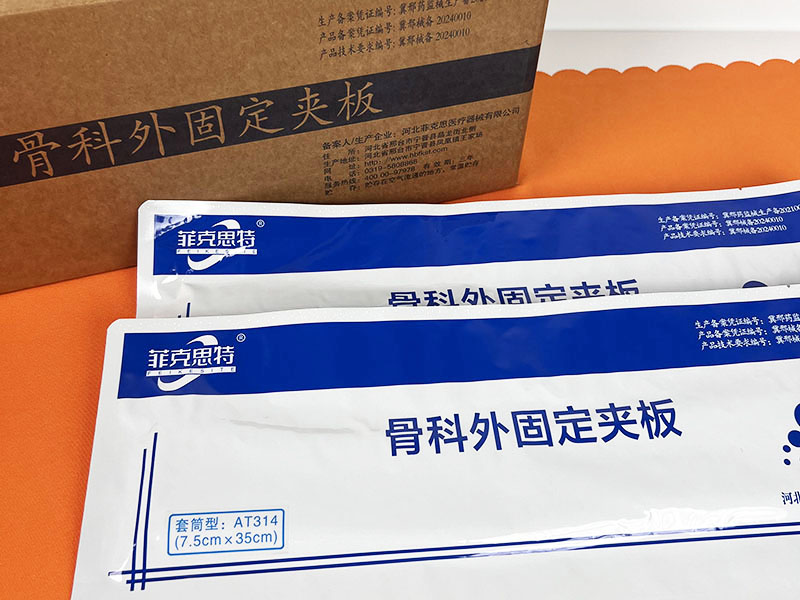

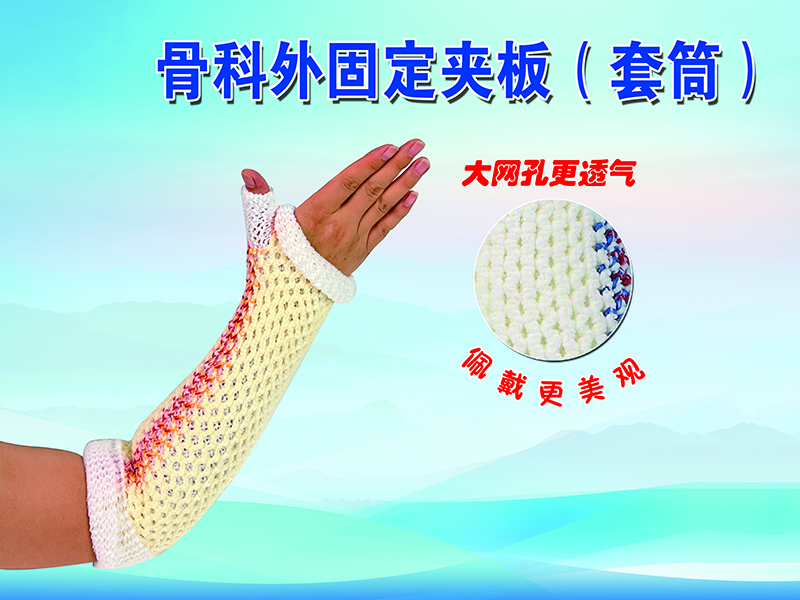

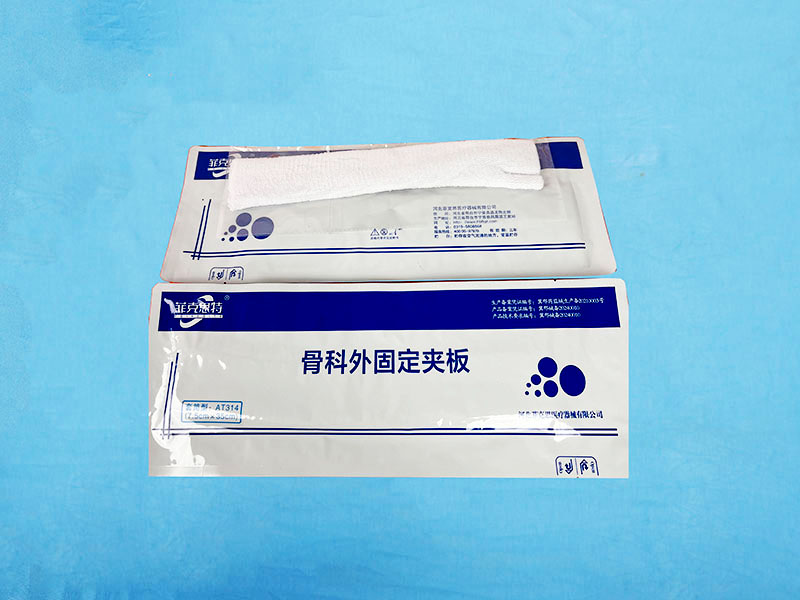

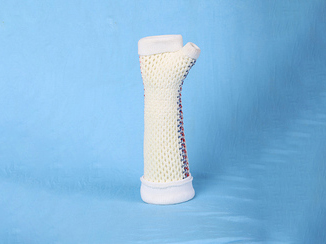

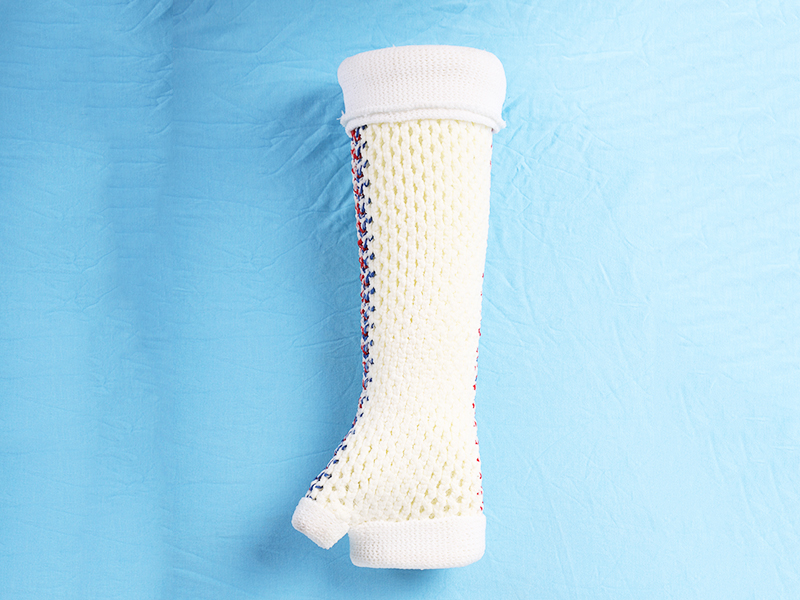

Product Name: Orthopedic External Fixation Splint (Sleeve Type)
Usage steps:
1. Choose the appropriate size of clamp (sleeve) as needed
2. Wear the protective cover to the fixed position
3. Take out the product and roll it into a roll shape
4. Soak the product in room temperature water for 3-5 seconds and squeeze 2-3 times to fully absorb moisture
5. Twist out the moisture of the product, fix it from one end and gradually move it up, while shaping it
6. The operation time is generally 3-5 minutes, and complete hardening takes 15-20 minutes.
7. When dismantling, use an electric gypsum saw to remove it
|
Model |
Specifications（cm） |
Packing Specification |
Applicable Part |
|
AT210 |
5cm×25cm |
15Bag/Box×6Box/Box |
Palmar wrist joint |
|
AT214 |
5cm×35cm |
15Bag/Box×6Box/Box |
Palmar wrist joint |
|
AT218 |
5cm×45cm |
15Bag/Box×6Box/Box |
Palmar wrist joint |
|
AT224 |
5cm×60cm |
15Bag/Box×6Box/Box |
Palmar wrist joint |
|
AT310 |
7.5cm×25cm |
15Bag/Box×6Box/Box |
Forearm Series |
|
AT314 |
7.5cm×35cm |
15Bag/Box×6Box/Box |
Forearm Series |
|
AT315 |
7.5cm×40cm |
15Bag/Box×6Box/Box |
Forearm Series |
|
AT322 |
7.5cm×55cm |
10Bag/Box×6Box/Box |
Upper limb series |
|
AT328 |
7.5cm×70cm |
10Bag/Box×6Box/Box |
Upper limb series |
|
AT335 |
7.5cm×90cm |
10Bag/Box×6Box/Box |
Upper limb series |
|
AT414 |
10cm×35cm |
10Bag/Box×6Box/Box |
Forearm Series |
|
AT420 |
10cm×50cm |
10Bag/Box×6Box/Box |
Forearm Series |
|
AT422 |
10cm×55cm |
10Bag/Box×6Box/Box |
Forearm Series |
|
AT424 |
10cm×60cm |
10Bag/Box×6Box/Box |
Upper and Lower Limb Series |
|
AT430 |
10cm×75cm |
5Bag/Box×6Box/Box |
Upper and Lower Limb Series |
|
AT435 |
10cm×90cm |
5Bag/Box×6Box/Box |
Upper and Lower Limb Series |
|
AT522 |
12.5cm×55cm |
5Bag/Box×6Box/Box |
Lower leg and lower limb |
|
AT525 |
12.5cm×65cm |
5Bag/Box×6Box/Box |
Lower leg and lower limb |
|
AT535 |
12.5cm×90cm |
5Bag/Box×6Box/Box |
Lower leg and lower limb |
